The Bluetti RVSolar 48V System Basic Kit is a permanent-install power system for RVs, vans, boats and off-grid cabins. It bundles a 5,000W inverter hub with a 5,120Wh LFP battery, so one box covers inverter, solar charging and 12V power.
It’s not a portable power station. Here’s what’s in the kit, what it can charge from, and the limits to know before you wire it in.
Specs at a Glance
| Spec | Bluetti RVSolar 48V Basic Kit |
|---|---|
| Kit contents | RV5 Power Hub, B4810 battery, basic wiring set, manual |
| AC output | 5,000W continuous, 6,000W surge, pure sine wave |
| Battery | 51.2V, 100Ah, 5,120Wh LiFePO4 |
| Battery life | 6,000+ cycles, IP65, self-heating to -4°F |
| Solar input | One MPPT input, up to 1,800W, 50V max |
| Alternator charging | Up to 1,200W (24V) or 600W (12V) |
| Shore/AC charging | Up to 5,000W, about 90 minutes to full on one battery |
| 12V output | Regulated, 100A |
| Weight | Hub about 35 lb, battery about 101 lb |
Why 48V?
Higher voltage means lower current for the same watts. That allows thinner, cheaper cable runs and less heat in the wiring. Bluetti claims a 48V system is about 30% more efficient than 12V. That’s the company’s figure, not an independent test.
The hub still gives you a regulated 12V output for pumps, lights and slide-outs, so your existing 12V gear keeps working.
What It Can Charge From
The RV5 takes power from four sources: solar, shore power, a generator, and your vehicle’s alternator. The alternator input shares a port with the second solar input, so you use one or the other.
Shore charging is the fast path. One battery fills in roughly 90 minutes at full power.
For solar, here’s a rough estimate: an 800W array in good sun makes about 2.6–3.2kWh a day (800W × 5 sun hours × 65–80% efficiency). That’s about half a battery. Most roofs won’t fit the 1,800W maximum, so plan on a few sunny days to fully recharge from solar alone.
Bluetti RVSolar 48V Basic Kit Review

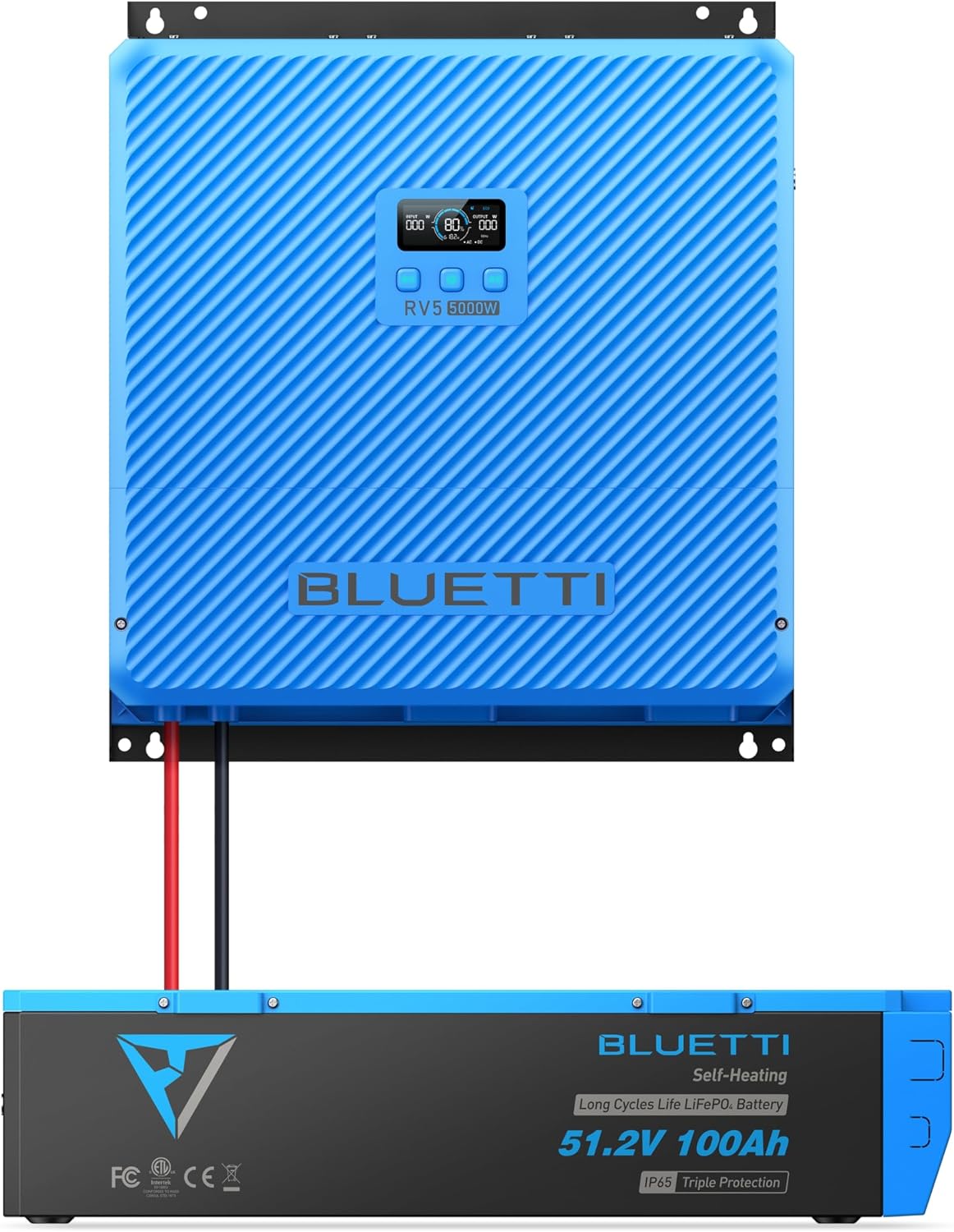

Bluetti RVSolar System Basic Kit (RV5 Power Hub + B4810 Battery)
The appeal is having one integrated system instead of separate inverter, charger, controller and battery. The battery is rated for self-heating, so it can charge in freezing weather.
The catch is the 50V solar limit. Panels must be wired in parallel, because series strings of standard residential panels can exceed 50V and damage the controller. That means heavier cable and branch connectors. Our solar panel wire guide explains why gauge matters on parallel runs.
A second catch is the install. One review calls Bluetti’s Epanel, a separate $499 add-on, effectively required for most installs. Without it you’ll need custom 120V wiring. The Amazon listing is also new, with only 3 ratings (3.2 stars) at the time of writing.
| Pros | Cons |
|---|---|
| Inverter, charger, controller and battery in one kit | 50V solar cap forces parallel panel wiring |
| 5,000W output runs an RV air conditioner and microwave | Panels, mounts and the Epanel are not included |
| Self-heating, IP65 battery rated for 6,000+ cycles | Battery weighs about 101 lb |
| Charges from solar, shore, generator and alternator | Few Amazon ratings so far |
Best for: Full-time RVers, van builders and off-grid cabin owners who want a permanent 48V system and are comfortable with a DIY install.
Full details and current price: BLUETTI RVSolar System Basic Kit (RV5 Power Hub + B4810 Battery) on Amazon
Planning the rest of the build? See our guides to an RV solar panel kit, solar panel roof mounts, and the best portable power stations for an RV air conditioner. For weekend trips, a portable unit is simpler, so check our best solar generator for RV picks.
Frequently Asked Questions
What’s in the Basic Kit?
Per the Amazon listing, it includes the RV5 Power Hub, the B4810 battery, a basic wiring set and a manual. Solar panels, mounts and the Epanel are separate.
How many solar panels can I connect?
The hub accepts up to 1,800W on one input, capped at 50V. Wire panels in parallel and check each panel’s open-circuit voltage (Voc) on the label.
Can it charge from my vehicle’s alternator?
Yes, up to 1,200W on a 24V system or 600W on 12V. That port can’t do solar and alternator charging at the same time.
Do I need an electrician?
The hub-to-battery hookup is DIY-friendly. Tying into your RV’s AC wiring is harder, and local rules may require a licensed electrician for the final connections.
Can I add more batteries later?
Yes. Bluetti says the system expands, and the B4810 can be stacked up to three high. Its stated maximum capacity is a manufacturer figure.
Final Verdict
The Bluetti RVSolar Basic Kit is a capable all-in-one 48V system for people building a permanent setup, and it handles big loads like an air conditioner. Budget for panels, parallel-rated cable and the Epanel on top of the kit price, and check Bluetti’s own store for current pricing before you order.
